Шоколадные ракушки и черепаха с веганской начинкой внутри




Начинка
Урбеч кокосовый
100 г
Сироп топинамбура
2 ст.л
Ванилин
совсем чуть-чуть, на кончике ножа


Шоколад
Какао тёртое
60 г
Какао-масло
40 г
Сироп топинамбура
2 ст.л

Масло какао обычное, можно заменить Микрио (Mycryo).

Mycryo™ - 100% натуральный ингредиент, это натуральное какао-масло в виде порошка. Настоящая революция для темперирования. Всего лишь 1% Mycryo™, добавленные к растопленному шоколаду, отделяют необходимое количество стабильных кристаллов для получения шоколада нужной прекристаллизации. Более того, благодаря дополнительному содержанию какао-масла шоколад получает дополнительный блеск и звонкий треск

Темперирование шоколада производите после того, как будет готова начинка.

Этап 1 Растопите шоколад при 40-45°C (в микроволновой печи или на водяной бане).

Этап 2 Оставьте шоколад охлаждаться при комнатной температуре до 34°C (для темного шоколада) или до 33°C (для молочного, белого или цветного шоколада).

Этап 3 Добавьте 1% Mycryo в растопленный шоколад из расчета 10 г/1 кг шоколада.

Этап 4 Тщательно перемешайте.

Этап 5 После того как шоколад был прекристаллизован, поддерживайте его температуру при 34°C (для темного шоколада) или при 33°C (для молочного, белого или цветного шоколада).

Этап 6 Если вам нужно использовать шоколад в течение длительного времени, поддерживайте его температуру при 31°C (для темного шоколада) или при 29°C (для молочного, белого или цветного шоколада).

Начинка веганская

1) Кокосовый урбеч должен быть мягким, поэтому перед приготовлением начинки его нужно достать из холодильника, чтобы он согрелся до комнатной температуры. ВАЖНО! Урбеч не нужно растапливать на водяной бане или в горячей воде, иначе он расслоится, и начинка получится не такой, как должна быть.
 В блендере с S–образным ножом на самой маленькой скорости смешиваем кокосовый урбеч, сироп топинамбура и ванилин. Долго смешивать не нужно, лишь немного прокрутить, чтобы ингредиенты смешались. Если у вас нет блендера, то можно смешать все ингредиенты вилкой.

Начинку можно положить в шоколадные формы с уже остывшим шоколадом или покрасить шоколадом, у кого нет формочек

2)Полученную начинку раскладываем по формочкам. Удобно использовать силиконовые формы для конфет или для льда, так как из них потом легче доставать нашу начинку для конфет. Убираем в морозильную камеру на 15 минут.

Если нет Микрио, то добавляем обычное тертое какао
3)Пока начинка застывает, готовим шоколад. Для этого на водяной бане растапливаем какао–масло и какао тёртое , убираем с водяной бани и добавляем сироп топинамбура. Постоянно помешивая, остужаем шоколад до температуры примерно 27 градусов.


4)Достаём начинку из формы и покрываем шоколадом. Покрывать несколькими слоями, убирая после каждого конфеты в морозилку на несколько минут, чтобы шоколад «схватился».


5)Готовые конфеты можно украсить шоколадом разного цвета при помощи "корнетика", молотыми орешками или кокосовой стружкой.


Формы для ракушек, бывают большие и маленькие


Форма для шоколадных конфет 28×30 h9 CW1210 Ракушка
Цена: 29.76 руб.



Поликарбонатные формы для изготовления шоколадных конфет всевозможных дизайнов с ровными краями и аккуратными декоративными элементами очень удобны в использовании и заметно экономят время.

Для изготовления конфет нужно разлить разогретую шоколадную глазурь (или темперированный шоколад) по ячейкам на пресс-форме, добавить наполнители, охладить и извлечь конфеты.

Конфета состоит из двух половинок.

Размеры конфеты (1 половинка): 28 x 30 мм, высота 9 мм.

Масса конфеты (1 половинка): 5 г.

Размеры пресс-формы 275 x 135 мм, высота 24 мм.

На пресс-форме 32 ячейки, каждая для половинки конфеты.

Хранить вдали от источников тепла и солнечных лучей.

Страна происхождения: Бельгия.



Форма для шоколадных конфет 120×135 CW1155 Гребешок
Цена: 29.76 руб.



Форма для шоколадных конфет 150×78 CW1361 Ракушка треугольная
Цена: 29.76 руб.




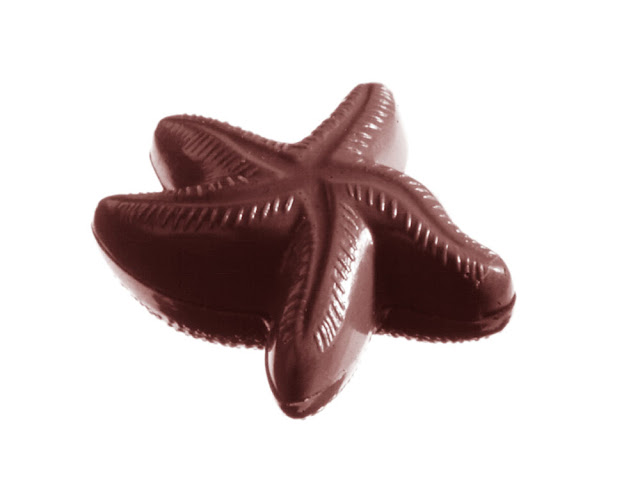

Форма для шоколадных конфет 38×29 h7 CW1124 Морская звезда
Цена: 29.76 руб.


Форма для шоколадных конфет 50×20 h11 CW1402 Ракушка спиральная
Цена: 29.76 руб.




Форма для шоколадных конфет 50×22 h9 CW1534 Морской конек
Цена: 29.76 руб.



Форма для шоколадных конфет 50×35 h12 CW1411 Черепаха
Цена: 29.76 руб.

Микрио (Mycryo). 5.60 Br для темперирования 4 кг шоколада. Настоящая революция для темперирования.

 100% натуральное какао-масло в виде микропорошка.



5.60 Br для темперирования  4  кг шоколада

Mycryo™ - 100% натуральный ингредиент, это натуральное какао-масло в виде порошка. Настоящая революция для темперирования. Всего лишь 1% Mycryo™, добавленные к растопленному шоколаду, отделяют необходимое количество стабильных кристаллов для получения шоколада нужной прекристаллизации. Более того, благодаря дополнительному содержанию какао-масла шоколад получает дополнительный блеск и звонкий треск.


Этап 1 Растопите шоколад при 40-45°C (в микроволновой печи или на водяной бане).

Этап 2 Оставьте шоколад охлаждаться при комнатной температуре до 34°C (для темного шоколада) или до 33°C (для молочного, белого или цветного шоколада).

Этап 3 Добавьте 1% Mycryo в растопленный шоколад из расчета 10 г/1 кг шоколада.

Этап 4 Тщательно перемешайте.

Этап 5 После того как шоколад был прекристаллизован, поддерживайте его температуру при 34°C (для темного шоколада) или при 33°C (для молочного, белого или цветного шоколада).

Этап 6 Если вам нужно использовать шоколад в течение длительного времени, поддерживайте его температуру при 31°C (для темного шоколада) или при 29°C (для молочного, белого или цветного шоколада).

вторник, 28 сентября 2021 г.

Как не располнеть в холода:-)

В холодное время года из активных и худых мы почему-то нередко превращаемся в пассивных и толстых. Можно ли удержать вес зимой?




Голод – не враг худеющего, а его друг и помощник на пути к новому, более легкому весу. Голод предупреждает, что организму требуется очередная порция энергии.



Что мы теряем при похудении - жир, мышцы или всего лишь воду?
Хочется, конечно, беззаботно радоваться каждому ушедшему килограмму, но если вы новичок в похудении, то лучше радоваться потом. А сначала подумать и разобраться – жир ли ушел?
По статистике, за осень и зиму мы поправляемся в среднем на 2–5 кг. Почему? Так мы реагируем на сезонное изменение климата. Ведь какой бы урбанизированной ни была наша с вами жизнь, по сути своей мы остаемся существами, очень тесно связанными с природой. У «осенне-зимнего привеса» три естественные причины.

Причина первая:
дефицит солнца.

В холодное время года световой день короче. В условиях нехватки света снижается выработка инсулина и, соответственно, повышается содержание сахара в крови. Поэтому нам все время хочется есть и мы гораздо чаще, чем летом, наведываемся к холодильнику. Считается, что человечество зародилось в экваториальной Африке и на генетическом уровне запомнило тот факт, что день должен быть равен ночи. И когда светлое время суток сокращается, мы начинаем неосознанно тревожиться и заедать это!

Совет:
добавьте в жизнь света! Гуляйте пешком даже в пасмурную погоду. Замените электролампочки в доме на более мощные, чем летом.
Не задергивайте днем шторы.
Световосприятие улучшают витамины A, D и E. Ах, бывали времена до пандемии, когда можно было использовать радикальный метод – поехать на пару недель  на юг Франции :-) Туда, где пляж, тепло и много солнца.

Причина вторая: сезонная депрессия.

 По закону подлости, нам не хочется «заедать» ее полезной  едой. Мы предпочитаем все самое вредное, жирное и сладкое. И не от того, что совсем «распустились», а потому, что интуитивно пытаемся стимулировать выработку «гормонов счастья» серотонина и эндорфинов.
Дело в том, что из-за сезонной гормональной перестройки углеводы, которые нужны для производства этих веществ, начинают хуже усваиваться. В результате организм требует больше углеводной еды, а мы идем у него на поводу !

К тому же в это время нам не хватает витамина D, без которого человек также впадает в депрессивно-апатичное состояние. Так что обильной едой мы интуитивно пытаемся восполнить его нехватку.

Совет: Еда, конечно, нам поможет, но далеко не всякая.
 Делайте акцент на жирной морской мелкой рыбе (это не только витамин D, но и природный антидепрессант омега-3), сложных углеводах (бобовые и зерновые)

Причина третья: эволюционная защита.
Зимой у нас замедляется метаболизм, и мы склонны впадать в своеобразную «спячку» – начинаем больше спать и меньше двигаться, экономя тепло и энергию.
 Такой тип сезонного поведения тоже заложен в нас природой. Раньше человеку, лишенному радостей центрального отопления, с наступлением морозов было жизненно необходимо запасти жирку для согрева.

Совет: больше двигайтесь.
Больше играйте с детьми во дворе.:-) Возьмите за правило каждый вечер проходить по 2–3 километра (это всего-навсего полчаса энергичным шагом). Выбирайте свой темп: ни одышки, ни вялости быть не должно. Наша задача – поддерживать мышцы в тонусе, чтобы не замедлялся обмен веществ. А чрезмерные нагрузки лишь подстегивают аппетит и приводят к перееданию. В результате бодрой прогулки в кровь поступит больше кислорода, который простимулирует снижение веса. Кроме того, холодный воздух вкупе с активным движением и скоростью – простейший способ поднять в крови уровень эндорфинов, а значит, и улучшить настроение.

ДРУГИЕ ОСОБЕННОСТИ ЗИМНЕГО РАЦИОНА

Если вы вдруг обнаружили, что немного прибавили в весе, не пытайтесь сесть на овощи и кефир – во-первых, они стимулируют аппетит, и чувство голода будет невыносимым.
Во-вторых, строгие диеты осенью и зимой могут подорвать защитные силы организма, и вы будете обречены на простуды и вечный насморк.
Не пытайтесь сбросить вес любой ценой – скорее всего, это закончится срывом и, как следствие, дополнительным набором веса.
Совсем отказываться от жира тоже не стоит – достаточно лишь ограничить себя парой ложек растительного масла , может и  5–10 г сливочного, кокосового масла или сала иногда:-). Добавьте в салаты печени трески (пару ложечек, а не целую банку за раз:-)))
Не ленитесь готовить горячие завтраки (они дают ощущение тепла и комфорта), не упускайте возможность нормально пообедать , откажитесь от курения и алкоголя – они замедляют обмен веществ.


Stats

воскресенье, 26 сентября 2021 г.

Слава, Господи, Кресту Твоему Честному.

 Когда будете подходить ко кресту сегодня на прощание, – поклонитесь ему благоговейно, любовно, трепетно, но, приложившись к нему, отдавая ему поцелуй веры и поцелуй любви, примите заповедь Господню: Отвергнись себя! Возьми свой крест и последуй за Мной – куда бы Я ни пошел... Аминь.



Тропарь Воздвижению Честнаго и Животворящего Креста Господня

Спаси́, Го́споди, лю́ди Твоя́/ и благослови́ достоя́ние Твое́,/ побе́ды на сопроти́вныя да́руя// и Твое́ сохраня́я Кресто́м Твои́м жи́тельство.


Перевод: Спаси, Господи, людей Твоих и благослови наследие Твое, победы православным христианам над иноплеменными даруя и Крестом Твоим сохраняя Твой народ.

Léon ... Исполняет Karpatt



Léon

Леон

Léon, dans son costume, tiré à quatre épingles Леон в своем костюме приколол
Semble tout droit sorti d’un film des années vingt Кажется, прямо из фильма двадцатых
Tu le sors d’où Léon, ce costard de bastringue Ты вытащишь его оттуда, где Леон, этот костюм
On le chambre un peu, ici tout l’monde l’aime bien Мы немного его обставили, всем здесь нравится
Léon a rendez-vous ce soir avec une gazelle У Леона сегодня свидание с газелью
Elle doit être jolie, vu les efforts qu’il a fait Она должна быть красивой, учитывая усилия, которые он сделал
Léon a rendez-vous, il nous avoue qu’elle est belle У Леон есть свидание, он признается, что она красивая
Si belle qu’il hésite encore à y aller Настолько красивый, что он все еще не решается идти
Il faut bien lui parler, Léon Ты должен поговорить с ним, Леон
Il faut pas la brusquer, Léon Не торопи ее, Леон


Il faut la faire rêver, Léon Ты должен сделать ее мечту, Леон
Il faut la faire chanter, il faut la faire danser Вы должны заставить его петь, вы должны заставить его танцевать
Il faut bien lui parler, Léon Ты должен поговорить с ним, Леон
Il faut la faire rire, Léon Ты должен рассмешить ее, Леон
Il faut la faire rougir, Léon Ты должен заставить ее покраснеть, Леон
Il faut la faire danser Вы должны заставить ее танцевать
Depuis que la Raymonde, paix à son âme!Со времен Раймонда, мир его душе!
A laissé à Léon, le zinc en accoudoir Слева Леону, цинк на подлокотнике
Il en a bu des coups à la santé de sa femme Он ударил здоровье своей жены
Il en a pris des cuites, alors le voir Он напился, так что увидимся
Dedans ce beau costume, qui devait être à son père В этом прекрасном костюме, который, должно быть, был отцом
Y’a comm' de l'émotion, on a envie de l’aider Здесь много эмоций, мы хотим ему помочь
Assure comm' un chef, Léon, tu sais y faire Уверяю шеф-повара, Леон, ты знаешь, как это сделать
On l’embrasse sur le caillou il a l’air gêné Мы целуем его в камешек, он выглядит смущенным
Il faut bien lui parler, Léon Ты должен поговорить с ним, Леон
Il faut pas la brusquer, Léon Не торопи ее, Леон
Il faut la faire rêver, Léon Ты должен сделать ее мечту, Леон
Il faut la faire chanter, il faut la faire danser Вы должны заставить его петь, вы должны заставить его танцевать
Il faut bien lui parler, LéonТы должен поговорить с ним, Леон
Il faut la faire rire, LéonТы должен рассмешить ее, Леон
Il faut la faire rougir, Léon Ты должен заставить ее покраснеть, Леон
Il faut la faire danser Вы должны заставить ее танцевать
On lui a mis dans les bras un bouquet de marguerites Мы положили букет ромашек на руки
Ajusté la cravate, il est beau comme un sou neuf Приспособленный галстук, это выглядит так же хорошо, как новая копейка
Sûr qu’elle va succomber dans tes bras la petite!Уверена, она сдастся в твоих руках, малышка!


Léon, c’est quand que tu nous présentes ta nouvelle meuf? Леон, когда ты представляешь нам свою новую девушку?
Léon s’est tiré sous les olas du bistrot Леон взял себя под олы бистро
Il en menait pas large mais il s’est pas retourné Он не шел широко, но он не обернулся
On l’a suivi du regard jusqu'à l’entrée du métro Мы проследили за его взглядом до входа в метро
Y’avait dans son rencard un côté ce soir ou jamais Была ли сторона ее свидания сегодня вечером или никогда
Il faut bien lui parler, LéonТы должен поговорить с ним, Леон
Il faut pas la brusquer, LéonНе торопи ее, Леон
Il faut la faire rêver, LéonТы должен сделать ее мечту, Леон
Il faut la faire chanter, il faut la faire danserВы должны заставить его петь, вы должны заставить его танцевать
Il faut bien lui parler, LéonТы должен поговорить с ним, Леон
Il faut la faire rire, Léon Ты должен рассмешить ее, Леон
Il faut la faire rougir, Léon Ты должен заставить ее покраснеть, Леон
Il faut la faire danser Вы должны заставить ее танцевать
Le lend’main au bistrot, il avait déserté le poste На следующий день в бистро он покинул пост
Mais pour un type comme lui, autant dire c’est pas rien Но для парня, как он, сказать, что это не ничего


On a jamais su comment elle était belle la bell' gosse Мы никогда не знали, как прекрасен ребенок колокольчика
Qu' a volé not' poteau et laissé du chagrin Что украло наш столб и ушло с печалью
Si un jour tu reviens, Léon, ici t’auras ta placeЕсли однажды ты вернешься, Леон, здесь у тебя будет свое место
J’espère qu ‘tu nous raconteras à ta façon Я надеюсь, что вы сообщите нам свой путь
On rira comme avant, tu sais elle manque ta grimace Мы будем смеяться, как раньше, вы знаете, она скучает по вашему лицу
Et puis t’as laissé une ardoise, alors fais pas l’con!А потом вы оставили сланец, так что не шутите!
Il faut bien lui parler, Léon Ты должен поговорить с ним, Леон
Il faut pas la brusquer, LéonНе торопи ее, Леон
Il faut la faire rêver, Léon Ты должен сделать ее мечту, Леон
Il faut la faire chanter, il faut la faire danserВы должны заставить его петь, вы должны заставить его танцевать
Il faut bien lui parler, Léon Ты должен поговорить с ним, Леон
Il faut la faire rire, Léon Ты должен рассмешить ее, Леон
Il faut la faire rougir, Léon Ты должен заставить ее покраснеть, Леон
Il faut la faire danser. Вы должны заставить ее танцевать.

Сыроедческие Хлебцы из Брокколи в дегидраторе

 Процесс их приготовления невероятно прост. Из техники нужен только кухонный комбайн и дегидратор.




ИНГРЕДИЕНТЫ

  • 2 стакана соцветий брокколи, нарубленных
  • 1 пастернак, очищенный и нарезанный (покупаю в евроопт доставке зелень weekend, можно выбирать и цикорный ряд)
  • горсть кале
  • 2 столовые ложки измельченной петрушки
  • 0,5 стакана миндаля, замоченного и дегидрированного
  • 0,25 стакана семян подсолнечника, замоченных и дегидрированных
  • 0,5 стакана льняной муки
  • 1 столовая ложка сушеного чеснока(или свежего мелко порезанного)
  • морская соль и черный перец, по вкусу

РЕЦЕПТ

1

Поместить брокколи, пастернак, кале и петрушку в кухонный комбайн и измельчить до получения массы с консистенцией не слишком мелкой крошки.

2

Добавить оставшиеся ингредиенты и прокрутить еще раз так, чтобы все хорошо перемешалось.

3

Распределить полученную массу по застеленному антипригарным листом поддону дегидратора слоем толщиной около 1 см.

4

Дегидрировать в течение 8 часов при температуре 40°C.

5

Когда верхушка пласта подсохнет, перевернуть его и нарезать кусочками любой удобной формы, убрав антипригарный лист.

6

Дегидрировать еще 6-8 часов или до полного высыхания хлебцев.

7

Хранить в плотно закрывающемся контейнере.

суббота, 25 сентября 2021 г.

Созданы наночастицы, имитирующие эритроциты. Эпоха синтетической крови наступила!






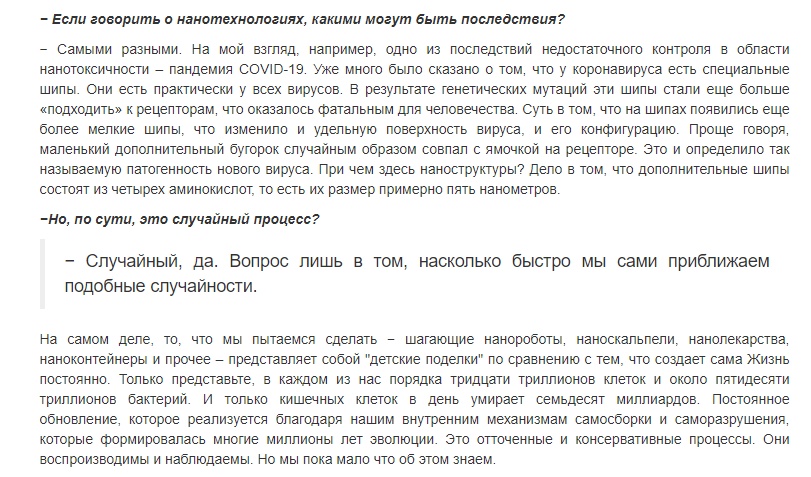

 https://scientificrussia.ru/interviews/akademik-m-v-dubina-nanotechnologii-novoe-budushee





http://www.rsci.ru/science_news/228309.php

Созданы наночастицы, имитирующие эритроциты

Американские учёные разработали наночастицы, которые полностью имитируют ключевые характеристики эритроцитов.


Добро пожаловать в будущее — в мир синтетической крови!


С помощью новоизобретённой технологии, известной как PRINT (Particle Replication in Non-wetting Templates — репликация частиц в несмачиваемых матрицах), Джозеф Десимон из Университета Северной Каролины и его коллеги научились изготавливать очень мягкие гидрогелевые частицы, которые имитируют размер, форму и податливость красных кровяных клеток.


Испытания способности частиц выполнять функции эритроцитов — транспортировать кислород и терапевтические препараты — не проводились. Известно лишь, что синтетические тельца остаются в сердечно-сосудистой системе почти столько же, сколько реальные клетки.


Тем не менее исследователи считают, что они достигли огромных высот, сделав частицы столь эластичными, — ведь именно способность к деформации позволяет эритроцитам проходить через микроскопические поры в органах и узкие кровеносные сосуды. Только к концу жизни клетки становятся жёсткими и уже не могут миновать «фильтр» в селезёнке.


Эритроциты живут около 120 дней, а период полураспада их самого гибкого искусственного собрата в организме мыши составил 93,29 часа. Более жёсткие частицы, как правило, заканчивают жизнь в лёгких, а новинка выводилась из организма по всем правилам — селезёнкой.


Имитация гибкости важна и для лечения онкологических заболеваний. Дело в том, что раковые клетки мягче здоровых, и это позволяет им распространяться по всему организму. Гибкие частицы, несущие противораковые лекарства, станут «симметричным ответом» онкологической угрозе.


Диаметр искусственного эритроцита составляет 6 мкм.


Результаты исследования опубликованы в журнале Proceedings of the National Academy of Sciences.

https://www.pnas.org/content/108/2/586


Abstract

It has long been hypothesized that elastic modulus governs the biodistribution and circulation times of particles and cells in blood; however, this notion has never been rigorously tested. We synthesized hydrogel microparticles with tunable elasticity in the physiological range, which resemble red blood cells in size and shape, and tested their behavior in vivo. Decreasing the modulus of these particles altered their biodistribution properties, allowing them to bypass several organs, such as the lung, that entrapped their more rigid counterparts, resulting in increasingly longer circulation times well past those of conventional microparticles. An 8-fold decrease in hydrogel modulus correlated to a greater than 30-fold increase in the elimination phase half-life for these particles. These results demonstrate a critical design parameter for hydrogel microparticles.


biomimeticdeformabilitydrug carrierslong circulatingred blood cell mimic

The ability of mammalian cells to contract or stretch strongly influences their motility and biodistribution (1). The extraordinary flexibility of mammalian RBCs enables them to deform many thousands of times during their long lives in the circulation with up to 100% strain (2) as they pass through restrictions in the vasculature that is smaller than their diameter. During their 120-d lifetime, RBCs experience chemical changes to their membrane structure, rendering them less flexible, and leading to their removal from the circulation via splenic filtration (3). Beyond RBCs, cancer cells, especially metastatic cancer cells, are elastically softer than healthy cells, a characteristic that is believed to be integral to their ability to spread to new locations (1, 4). Although much attention has been directed toward the enhancement of the circulation time of particles, including alterations of particle size (5, 6), shape (7–9), and surface characteristics (10), the role played by deformability in the in vivo circulation profile of particles has not been well explored.


Though particle size has long been considered dominant in determining in vivo behaviors such as circulation time and biodistribution profile, it stands to reason that physical filtration barriers in the body could be navigated by larger, but more deformable particles (11, 12). Deformable particles that resembled RBCs in size and shape have been shown to deform in restricted channels (13) or capillaries (14) that were smaller than the particle diameter, though the modulus of these particles was not characterized (13) or was poorly matched to RBCs (14) and was restricted to in vitro testing in both cases. In a simulation of renal filtration of soft particles, microgels translocated through pores that were 1/10th of the particle diameter under physiologically relevant pressures (15). Filamentous worm-like micelles were found to have increased circulation times with respect to their spherical counterparts, though this effect was attributed to the size and shape of these particles as well as the deformability (8). Inspired by nature’s example of long-circulating microparticles, we sought to mimic the size and shape of RBCs while varying the modulus across a physiologically relevant range to probe the physical barriers encountered in vivo by soft microparticles. Here we show that increasing the deformability of RBC-sized particles increased their circulation times beyond that of conventional microparticles and significantly altered their biodistributions. We found that, as a consequence of their low modulus, these discoid microparticles bypassed several in vivo filtration mechanisms, illustrated by animal survival and dramatic increases in elimination half-lives of particles with decreasing modulus. Such deformable and long-circulating particles may find utility in the fields of drug delivery and medical imaging, where long-circulation times and varied biodistributions are often desirable characteristics (6, 16, 17). Further, we expect these results will stand as an introduction for particle deformability as a vital design parameter that can affect the behavior of particles on both the micro- and nanoscales.


Results and Discussion

Fabrication of Red Blood Cell Mimics (RBCMs).

The particle replication in nonwetting templates (PRINT®) technique that has been developed in our laboratory allows for the fabrication of nonspherical, shape-specific particles through use of elastomeric fluoropolymer molds (18, 19). Using PRINT, we fabricated particles with similar size, shape, and deformability characteristics as RBCs (Fig. 1). In this study we chose to model the 6-μm diameter mouse RBC (20) and observe the in vivo behavior of the RBCMs. Although the distinctive biconcave discoidal shape of mature RBCs is generally conserved throughout the animal kingdom, mouse RBCs (6-μm diameter) are slightly smaller than their human counterparts (8-μm diameter) (20). Many hydrogels exhibit excellent biocompatibility (21), with their swelling and deformability controllable by varying the amount of cross-linking in the gel (22). We used hydrogels composed primarily of 2-hydroxyethyl acrylate (HEA) that were lightly (1–10%, by weight) cross-linked with poly(ethylene glycol) diacrylate (PEGDA, MW = 4,000 g/mol) with a photoinitiator (1-hydroxycyclohexyl phenyl ketone), and polymerizable fluorescent dyes (1%) to facilitate imaging. To mimic the negatively charged RBC membrane, we added 2-carboxyethyl acrylate (10%). See Table S1 for further details on hydrogel composition.


Fig. 1.

Download figure Open in new tab Download powerpoint

Fig. 1.

RBCM particles. (A) A graphical depiction of the PRINT process used to fabricate RBCMs. Briefly (Top to Bottom), an elastomeric fluoropolymer mold (green) with disc-shaped wells was covered by an aliquot of the prepolymer mixture (red). The mold was passed through a pressured nip (black) covered by a high-energy sheet (gray), wicking away excess liquid from the mold surface while filling the wells of the mold. The filled mold was cured photochemically, yielding cross-linked hydrogel particles, which were harvested from the mold by freezing onto a thin film of 1% poly(vinyl alcohol) in water (blue) and peeling away the mold. Melting of this layer resulted in a suspension of hydrogel particles. (B–E) Fluorescent images of hydrated RBCMs with varying percent cross-linker; (B) 10% cross-linked, (C) 5% cross-linked, (D) 2% cross-linked, and (E) 1% cross-linked. Scale bars are 20 μm.


To evaluate the suitability of this hydrogel for RBCM particles, we hydrated macroscopic coupons of hydrogels with varying percentage of PEGDA cross-linker at neutral pH and tested their mechanical properties with an Instron 5556 Universal Testing Machine (Instron) with a strain rate of 5 mm/ min. For bulk modulus studies we used fluorescein-o-acrylate as the polymerized dye, and to improve depth of tissue penetration and avoid tissue autofluorescence, a near-IR dye (Dylight680maleimide) was used for in vivo applications. By lowering the amount of cross-linker from 10% to 1%, we tuned the modulus of the resultant hydrated polymer from 63.9 to 7.8 kPa, respectively (Table 1), overlapping the range of the reported modulus for RBCs (26 ± 7 kPa) (23).


VIEW INLINE VIEW POPUP

Table 1.

Modulus values and compartmental analysis of RBCM particles from intravital microscopy experiments


Because of the swelling observed in the bulk hydrogel samples, we designed scaled-down master templates and molds for this study. The scaled-down features of the molds, with diameters of 2 or 3 μm, allowed the RBCMs to swell to the desired dimensions upon hydration, yielding discs that were 5.2–5.9 μm in diameter and 1.22–1.54 μm tall, with the feature size and final RBCM dimensions dependent upon the percent of cross-linker and the mold used. Filling the molds resulted in a meniscus, leaving the particles thinner in the middle and thicker at the edges (Fig. 1). This effect, which is not uncommon for the PRINT method (9), yielded RBCMs that were reminiscent of the biconcave shape of RBCs.


To assess the biocompatibility of the RBCMs, we performed in vitro cytotoxicity assays on human umbilical vein endothelial cell (HUVEC) (endothelial) cells. We dosed cells with varied concentrations of RBCMs (1.5–200 μg/mL) and incubated for 72 h (Fig. S1) before performing both MTS [(3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium)] and ATP-luciferase assays to assess cell life. Particles were well tolerated at all dosages tested by both assays. To examine the interaction of RBCMs with endothelial cells, we performed a flow cytometry-based cell uptake experiment (24). RBCMs were dosed to HUVEC cells at a concentration of 15 μg/mL and incubated for 15 min, 1, 2, 4, and 24 h, and then evaluated to determine the percentage of cells that had internalized the RBCM particles. Interaction between the RBCMs and cells was minimal, with less than 10% of cells having internalized particles after 24 h of incubation time (Fig. S2).


Microfluidic Examination of Particle Deformability.

To demonstrate the ability of RBCMs to deform in flow conditions such as they might experience in traversing the microvasculature, we utilized a microfluidic device with constricted pores (Fig. 2). Microfluidic models of vascular constriction have been explored to evaluate the behavior of natural and diseased RBCs (25) and synthetic mimics of RBCs (13). We designed a 3-μm tall channel with pores that were 3 μm wide and 50 μm long and repeated many times over the length of the device. The height of the channels was too short for the RBCMs to orient vertically to pass through the restrictions, forcing the particles to deform in order to traverse the pores. The device design (Fig. 2A) included over 100 repetitions of 3-μm restricted pores over the length of the channel, as well as an unrestricted 15-μm path on each side of the restrictions, running the length of the channel. This architecture tested the ability of the particles to deform repeatedly while providing an unobstructed path for fluid flow to maintain reasonably low pressures through the constricted pathways. Although the smallest capillaries in the body have diameters of around 5 μm, RBCs routinely deform to traverse splenic sinusoids that are much smaller (26). When dilute solutions of RBCMs were flowed through the device at a constant flow rate (0.06 mL/ min), the lower modulus RBCMs (1 and 2% cross-linked) navigated these pores, whereas more rigid RBCMs rapidly clogged them (Fig. 2). A movie of 1% cross-linked RBCMs traversing these pores can be seen in SI Text (Movie S1). In flow, the 1% cross-linked RBCMs stretched in the 3-μm wide channels, increasing in length 239% ± 26% (n = 15) while flowing through the restricted channels, followed by a relaxation back to their original discoid shape in the absence of flow. This behavior is similar to that of natural RBCs, which deform under flow conditions and only fully resume their characteristic discoid shape once flow is halted (27). Although RBCMs have similar size, shape, and deformability to RBCs, they differ in fundamental structure: RBCs are fluid-filled sacs contained by a complex membrane that has extreme flexibility originating from the membrane structure (28, 29), whereas the RBCMs are uninterrupted hydrogel discs. These two disparate structures should have different behaviors and mechanisms of deformation in constricted flow (13) though further studies are needed to elucidate these details for the RBCMs.


Fig. 2.

Download figure Open in new tab Download powerpoint

Fig. 2.

Microfluidic evaluation of RBCM deformability. (A) A schematic of the microfluidic devices, with flow driven by a syringe pump. (B) An image sequence showing a 1% cross-linked RBCM (6.0-μm diameter) deforming to pass through a 3 × 3.5 μm channel (25 ms between frames). (C) Ten percent cross-linked RBCMs stuck in the entrance of the 3-μm pores in a microfluidic device. Scale bars are 30 μm.


Compartmental Analysis of RBCM Circulation Profile After Intravenous Administration.

We used an intravital imaging method to examine the behavior of RBCMs when intravenously injected into mice. For intravital approaches, the microcirculation is directly observed with high spatial and temporal resolution, often through the use of surgical techniques to expose tissues of interest (30, 31). In our approach, we observed the peripheral vasculature through the skin of an anesthetized mouse’s ear. We directly observed the RBCMs via the near-IR fluorescence of the particles by imaging every 2 s for 2 h as the particles traversed this portion of the vasculature (see Movies S2 and S3). Elimination curves were generated by tracking the change in fluorescent signal from the particles over time (Fig. 3), normalizing each scan to the maximum intensity slice and plotting decay as a function of this maximum intensity.


Fig. 3.

Download figure Open in new tab Download powerpoint

Fig. 3.

Intravital microscopy data and compartmental analysis. (A) Vasculature highlighted with rhodamine B labeled dextran prior to injection of RBCMs. (B) Dylight 680 labeled 1% cross-linked RBCMs flowing through this stretch of vasculature 20 min after dosing, with ROI outlined in yellow. (C) Colored overlay of A and B, with dextran in blue and particles shown in red. Scale bars are 100 μm. (D) Two-compartment model schematic and governing equations used to fit the data. (E) Decrease in fluorescent signal in the ROI for the 2-h scan in this mouse. The semilog plot shows calculated fit for the two-compartment pharmacokinetic models.


Several pharmacokinetic models were investigated using a standard pharmacokinetic modeling program [WinNonlin (version 5.2.1; Pharsight Corp.)] to describe the plasma concentration versus time profiles to determine the best model. One- and two-compartment models with elimination from the central compartment, from the software’s library, were investigated, as was a two-compartment model with elimination from both the central and peripheral compartments, which was built by our group. The evaluation of the goodness of fit was based on the Akaike information criterion, the variability of the parameter estimates, and the absence of a significant correlation between independent model parameters (< 0.95). The two-compartment model with one elimination step from the central compartment provided the best fit for all of the datasets examined.


To evaluate the kinetics of RBCM clearance, we used this two-compartment pharmacokinetic model, characterized by a biexponential decrease in particle concentration over time (32), with parameters fit by nonlinear regression analysis (33). This model describes an initial (distribution) phase where the particles distribute from the plasma into various tissues, followed by a late (elimination) phase that describes the ultimate clearance of particles from the plasma (Fig. 3). For small molecules and nanoparticles the distribution is attributed to extravasation into tissue; because of their size, the distribution of RBCMs may be due to physical entrapment in constricted capillaries or tissues with low blood flow rather than by an extravasation process. Although we observed the RBCMs only for the initial 2 h in vivo, the uncertainty associated with the mathematical fitting was minimized due to the large number of data points used to fit each curve (over 350). Calculated distribution and elimination half-lives (t1/2(α) and t1/2(β), respectively) trended to longer times with decreased modulus (Table 1). Although the least flexible RBCMs were cleared quite rapidly, circulation times increased with increasing particle elasticity, with the most deformable RBCMs eliminated over 30 times more slowly than their most rigid counterparts (t1/2(β) = 3.9 d).


Intravital microscopy provided a method for direct observation of RBCM particles in the peripheral vasculature of mice and allowed us to make a close and thorough examination of the initial clearance profiles of these particles. Our analysis provided curves with approximately 350 data points illustrating the elimination of these particles from the circulation over each 2-h scan. Nonlinear regression analysis yielded excellent fits, with the large number of data points adding a measure of certainty to the shape defined by these elimination curves. With a method of directly observing the particles, we expect that our detection limits should be quite low as we are able to discern individual particles in the scans. However, this method was not without limitations. Direct correlation of the intensity of the fluorescent signal of the particles to a particle concentration was difficult due to several factors, including variabilities in the depth, volume, and flow rates in observed portions of vasculature and the relatively fast movement of particles relative to the scanning speed of the microscope. Lacking the correlation to particle concentration, we were unable to perform a full pharmacokinetic analysis on the RBCMs examined, though much was learned through an analysis of the shape of these curves.


To verify the long-circulating behavior of 1% cross-linked RBCMs, we tracked particle concentration in blood at time points out to 5 d postinjection via a more traditional blood-draw method. We examined three mice per time point, including 2, 8, 24, 72, and 120 h postinjection. At each time point examined, we sacrificed the mice, collected blood via cardiac puncture, and measured the fluorescent signal from the particles in the whole blood, which was correlated to concentration through the generation of a standard curve (see SI Text). Pharmacokinetic analysis of these data by the two-compartment model discussed above was in good agreement with the data obtained from the intravital technique; both techniques showed a fairly rapid distribution of the majority of the dose to various tissues, with 10–15% remaining in the blood after 2 h, resulting in an elimination half-life of 3.6 d, with 5% of the injected dose remaining in the blood after 5 d (Table 2).


VIEW INLINE VIEW POPUP

Table 2.

Pharmacokinetic parameters for 1% cross-linked RBCMs calculated from blood draws taken out to 5 d postinjection


Biodistribution of RBCM Particles After Intravenous Injection.

To examine the biodistribution of RBCMs with changing deformability, we sacrificed the mice 2 h postinjection and harvested tissue and blood samples for further analysis. Tissue samples were not perfused prior to analysis. Five and 10% cross-linked RBCMs distributed primarily into the capillary beds in the lungs (Fig. 4). This behavior is typical for intravenously injected micro-particles, with the bulk of the dose most likely sequestered immediately postinjection as this is the first downstream tissue with microvasculature. These stiffer RBCMs were poorly tolerated, with significant distress requiring sacrifice of some mice prior to scan completion; presumably due to the stiff particles contributing to pulmonary embolism. More flexible RBCMs (1 and 2% cross-linker) were very well tolerated, presumably due to the avoidance of filtration in the lungs. Mice that were sacrificed early were not included in any datasets presented here, as the time postinjection was incongruent with the bulk of the data analyzed. The most deformable RBCMs (1% cross-linked) were primarily sequestered in the spleen (67% recovered fluorescence/g), having largely avoided filtration in the lungs. Lung filtration was largely avoided by particles with 2% or less cross-linker (≤ 16.9 kPa, bulk material), suggesting that the modulus of these materials may indicate a threshold value for avoidance of filtration by the lungs. Uptake in the kidneys was significant for all but the 1% cross-linked RBCMs, though further studies will be required to elucidate the mechanism of this clearance.


Fig. 4.

Download figure Open in new tab Download powerpoint

Fig. 4.

Biodistribution of RBCMs. (A) Distribution of RBCMs into various tissues 2 h postdosing by percent recovered fluorescence normalized for tissue weight. Error bars represent one standard deviation, with n = 3 for each case. (B) Lung tissue from a mouse dosed with 10% cross-linked RBCMs. Particles are shown in red, with cell nuclei in purple, and cytoskeleton (F-actin) stained green. (C) Lung tissue from a mouse dosed with 1% cross-linked RBCMs, with tissue stained as in B. Very few RBCMs were in this tissue compared to mice dosed with more rigid particles, consistent with the tissue distribution data. Scale bars are 50 μm.


Distribution of 1% cross-linked RBCMs in liver, lung, spleen, kidneys, and blood was tracked for 2, 8, 24, 72, and 120 h postinjection (Figs. S4 and S5). Saturation of tissues occurred at different times, indicating a redistribution of particles after some initial distribution at the time of dosing. Although splenic accumulation peaked at 24 h, signal in the lungs decreased over the time course of the experiment; suggesting a delayed release of the physically entrapped particles back into the circulation.


With approximately 5% of the cardiac output flowing through the spleen (3) and the total blood volume of the mouse circulating 7–8 times per minute (34), the whole blood volume was passed through the mouse spleen some 42–48 times over the course of our 2-h scans. The continued persistence of 1% cross-linked RBCMs in the circulation after this time suggests that splenic accumulation may be due in part to long residence time rather than permanent filtration, as is the case for RBCs, where filtration occurs first as an effect of slow blood flow through the macrophage containing red pulp, followed by physical filtration when passing through the sinusoids or transmural apertures (3).


Further studies will be required to illuminate the capability of these particles to carry and deliver therapeutic payloads; however, extremely low modulus RBCMs could have therapeutic applications for splenic disorders due to their preferential accumulation in this tissue and the have potential for drug delivery applications due to their long-circulation times and low accumulation in the liver. Drug dosing can be limited by toxicity to a clearance organ such as the liver (35, 36). The apparent splenic clearance of RBCMs affords the possibility of different dosing restrictions if these particles were to be used as drug carriers because of the low concentrations found in the liver, as well as the possibility for direct treatment or imaging of the spleen. The most deformable of the RBCMs tested here successfully navigated regions of constricted blood flow, resulting in extended circulation times and illuminating a critical design parameter for microparticles. Further experimentation with extremely deformable materials on different size scales—from tens of nanometers to the 6-μm diameter particles used in this study, should cast light on the role played by deformability in enhancing the circulation times of biologically relevant particles.


Materials and Methods

Materials.

Commercially available HEA (96%, Aldrich) contains impurities such as acrylic acid, ethylene glycol, and ethyleneglycol diacrylate (EGDA) and was purified prior to use according to the procedure set forth by Elif and Ali (37). Briefly, HEA was dissolved in water (25% by volume) and the solution extracted 10 times with hexanes. Salt (200 g of NaCl/L) was added to the aqueous phase, and the monomer was extracted by washing with ether (4 times). The solution was dried with MgSO4 (3 wt %), and ether was removed by rotary evaporator. The purified monomer was distilled under vacuum prior to use. PEG 4000 diacrylate (DA) (Polysciences, Inc.), 2-carboxyethyl acrylate (Aldrich), fluorescein-o-acrylate (97%, Aldrich), 1-hydroxycyclohexyl phenyl ketone (99%, Aldrich), Dylight 680 maleimide (Thermo Scientific), Fluorescein-o-acrylate (97%, Aldrich) and methacryloxyethyl thiocarbamoyl rhodamine B (PolyFluor 570, Polysciences, Inc.) were used as received. All other materials were used as received, unless otherwise noted.


Modulus Testing.

To measure the mechanical properties of the cross-linked HEA hydrogels, we polymerized macroscopic coupons of the prepolymer mixtures described in Table S1 via UV light (λ = 365 nm, power = 20 mW/cm2) in a Teflon mold. The cross-linked hydrogels were removed from the mold, weighed, and then placed in pH 7.4 PBS buffer for 24 h to fully hydrate. The coupons were patted dry with paper towels and weighed again prior to testing with an Instron 5556 Universal Testing Machine (Instron) with a strain rate of 5 mm/ min.


Particle Fabrication.

For the PRINT technique (9, 18), master templates were prepared via traditional photolithography to have ordered arrays of raised discs with low aspect ratios, mimicking the shape of RBCs. A photocurable perfluoropolyether (Fluorocur, Liquidia Technologies) was drop cast onto a master template, and a flexible plastic sheet was applied to the top of the resin to act as a supportive backing for the mold that resulted from photocuring of the resin and subsequent removal from the master template. The master templates and molds used in this study had discoid features with 2- and 3-μm diameters and heights of 0.6 and 0.9 μm, respectively, and produced particles with 5- to 6-μm diameters due to swelling of the particle hydrogel material. For the fabrication of the particles, the prepolymer mixture was spread onto a mold that was chilled to 2–5 °C on a custom-built laminator platform. The reduced temperature prevented evaporation of the prepolymer solution prior to photocuring. A poly(ethylene terepthalate) (PET) sheet was laminated to the top of the mold and prepolymer solution, wetting the total mold area. The sheet was peeled away at the nip point of the laminator, leaving the wells of the mold filled while wicking away excess solution. The filled mold was immediately transferred into a chilled (2–5 °C), nitrogen purged UV oven and cured with UV light (λ = 365 nm, power = 20 mW/cm2). After curing, the filled mold was placed face down on a thin film of 0.1% 2,000 g/mol poly(vinyl alcohol) (PVOH, Acros) in water on top of another PET sheet. This assembly was placed in a -80 °C cooler, allowing the water to freeze and adhere to the particles. After freezing, the mold was peeled away from the particles trapped in the ice layer, and the ice was allowed to melt. RBCMs and water were collected, then washed and concentrated via tangential flow filtration with a MicroKros hollow fiber filter (500 kDa, Spectrum Laboratories, Inc.) to remove any sol fraction from solution. Particles were then suspended in 0.1% 2,000 g/mol PVOH in PBS, pH 7.4 for subsequent experiments.


Particle Characterization.

These methods (confocal microscopy, cell viability, cell uptake, and zeta potential) are described in SI Text, Figs. S1 and S2, and Table S2.


Microfluidics.

Microfluidic devices were fabricated from silicone (Sylgard 184, Dow Corning) sealed to glass after treatment with oxygen plasma, with flow driven by a syringe pump at a fixed rate (0.06 μL/ min). Dilute solutions of 1% cross-linked RBCMs (1–5 μg/mL in PBS with 0.1% PVOH) were pumped through the channel and observed with a fluorescence microscope (Nikon TE2000). Videos were taken with a with a Photometrics Cascade II∶512 camera. Particle stretching was analyzed with ImageJ software.


Intravital Microscopy.

Intravital microscopy experiments were performed using an IV 100 laser scanning microscope (Olympus) on female BALB/c mice of 22- to 26-g body weight (Harlan Sprague Dawley). Hair was removed from the ear and a tail vein catheter was applied. The mice were anesthetized with isofluorane and placed onto a heated stage (37 °C) in a prone position, with an ear immobilized by taping to an aluminum block. Vasculature was located by injection with a solution of 20 mg/mL rhodamine B labeled 70-kDa dextran (Invitrogen) in PBS and visualized by excitation with a 568-nm laser. A suspension of RBCMs, 33 mg particles/kg mouse weight via a 3.5 mg/mL solution of RBCMs in PBS with 0.1% PVOH, was then injected and visualized using a 633-nm laser. Controls were injected with the dextran solution followed by 200 μL of PBS with 0.1% poly(vinyl alcohol). Imaging scans proceeded for 2 h, with an image taken every 2 s. For analysis of the circulation persistence of the particles, the image files from each scan were exported to imageJ. For ease of analysis, we followed the example of Tong et al. (38) and stacked the images in groups of 10. We analyzed the region of interest containing vasculature for fluorescent signal in each scan and corrected for variation in laser intensity or autofluorescence by background correcting each image with the signal from a region of the scan that was free of vasculature. For comparison, we normalized each scan to the maximum intensity slice for that scan, providing curves that measured the clearance of particles from the peripheral vasculature over time as a percentage of the maximum signal. Further details are outlined in SI Text.


Controls and dosed mice were sacrificed 2 h after injections, and blood and tissues were harvested for imaging. Harvested tissues including liver, lung, spleen, kidneys, heart, and intestines were weighed, then imaged using an IVIS Kinetic fluorescence imaging system (Caliper Life Sciences) with excitation at 675 nm and emission measured at 720 nm. Blood was harvested via cardiac puncture and pipetted in 100-μL aliquots to black 96-well plates for analysis on the imager. The fluorescent signal for each tissue sample was background corrected by subtracting the signal from control tissues. Biodistribution profiles for the RBCMs at 2 h postdose were determined by percent of recovered fluorescence in the above tissues (Fig. 4). Fluorescent signal in the blood was calculated by measuring the fluorescent signal from several aliquots of blood and extrapolating to account for the total blood volume in the mice (approximately 1.7 mL/20 g of body weight) (39).


Biodistribution.

Harvested blood was analyzed for fluorescent signal with an IVIS Kinetic imager with excitation at 675 nm and emission measured at 720 nm, and concentrations were calculated with a standard curve. Harvested tissues were analyzed as above, with biodistribution profiles presented as a percent of the recovered fluorescence per gram of tissue weight.


Blood-Draw Experiments.

For evaluation of longer time points, particles were injected as in the previously described study, with mice sacrificed at the indicated time points by cardiac puncture. Fluorescent signal from harvested blood was measured as above, with concentrations determined from a standard curve resulting from serial dilutions of particles in mouse blood (Fig. S2).


Hisology.

Details of the procedure for staining and imaging the harvested tissues are found in SI Text.


Pharmacokinetic Analysis.

Further details on the pharmacokinetic analysis carried out for the RBCMs can be found in SI Text.


Acknowledgments

We thank the University of North Carolina Animal Studies Core for its assistance. This work was supported by the STC program of the National Science Foundation (CHE-9876674), National Institutes of Health (NIH) Director’s Pioneer Award (1DP1OD006432-01), the Center for Cancer Nanotechnology Excellence (NIH 5-U54-CA119373-02), Liquidia Technologies, and NIH (1R21HL092814-01).


Footnotes

1To whom correspondence should be addressed at: 257 Caudill Labs, The University of North Carolina at Chapel Hill, Department of Chemistry, CB#3290, Chapel Hill, NC 27599-3290. E-mail: desimone@unc.edu.

Author contributions: T.J.M., S.W.J., A.R.S., M.N., A.Z.W., J.E.B., and J.M.D. designed research; T.J.M., S.W.J., K.P.H., F.R.K., A.R.S., and J.C.L. performed research; T.J.M., H.W., and W.C.Z. analyzed data; J.E.B. contributed new reagents/analytic tools; and T.J.M. wrote the paper.


Conflict of interest statement: The authors declare competing financial interest. Joseph DeSimone is a founder, member of the board of directors, and maintains a financial interest in Liquidia Technologies. Liquidia was founded in 2004 to commercialize PRINT technology and other discoveries of Professor Joseph DeSimone and colleagues at the University of North Carolina, Chapel Hill.


This article is a PNAS Direct Submission.


This article contains supporting information online at www.pnas.org/lookup/suppl/doi:10.1073/pnas.1010013108/-/DCSupplemental.


References

↵Suresh S (2007) Biomechanics and biophysics of cancer cells. Acta Biomater 3:413–438.CrossRefPubMedGoogle Scholar

↵Fung YC (1993) Biomechanics Mechanical Properties of Living Tissues (Springer, New York), 2nd Ed, p 121.Google Scholar

↵Bowdler AJ, ed (2002) The Complete Spleen. Structure, Function, and Clinical Disorders (Humana Press, Totowa, NJ), 2nd Ed, 140, pp 18–20–30–47.Google Scholar

↵Suresh S (2007) Nanomedicine: Elastic clues in cancer detection. Nature Nanotechnol 2:748–749.CrossRefGoogle Scholar

↵Champion JA, Walker A, Mitragotri S (2008) Role of particle size in phagocytosis of polymeric microspheres. Pharm Res 25:1815–1821.CrossRefPubMedGoogle Scholar

↵Kohane DS (2007) Microparticles and nanoparticles for drug delivery. Biotechnol Bioeng 96:203–209.CrossRefPubMedGoogle Scholar

↵Champion JA, Katare YK, Mitragotri S (2007) Particle shape: A new design parameter for micro- and nanoscale drug delivery carriers. J Control Release 121:3–9.CrossRefPubMedGoogle Scholar

↵Geng Y, et al. (2007) Shape effects of filaments versus spherical particles in flow and drug delivery. Nature Nanotechnol 2:249–255.CrossRefGoogle Scholar

↵Gratton SE, et al. (2008) The effect of particle design on cellular internalization pathways. Proc Natl Acad Sci USA 105:11613–11618.Abstract/FREE Full TextGoogle Scholar

↵Drummond DC, Meyer O, Hong K, Kirpotin DB, Papahadjopoulos D (1999) Optimizing liposomes for delivery of chemotherapeutic agents to solid tumors. Pharmacol Rev 51:691–743.Abstract/FREE Full TextGoogle Scholar

↵Fox ME, Szoka FC, Frechet JM (2009) Soluble polymer carriers for the treatment of cancer: The importance of molecular architecture. Acc Chem Res 42:1141–1151.CrossRefPubMedGoogle Scholar

↵Mitragotri S, Lahann J (2009) Physical approaches to biomaterial design. Nat Mater 8:15–23.CrossRefPubMedGoogle Scholar

↵Haghgooie R, Toner M, Doyle PS (2009) Squishy non-spherical hydrogel microparticles. Macromol Rapid Comm 31:128–134.Google Scholar

↵Doshi N, Zahr AS, Bhaskar S, Lahann J, Mitragotri S (2009) Red blood cell-mimicking synthetic biomaterial particles. Proc Natl Acad Sci USA 106:21495–21499.Abstract/FREE Full TextGoogle Scholar

↵Hendrickson GR, Lyon LA (2010) Microgel translocation through pores under confinement. Angew Chem Int Edit 49:2193–2197.CrossRefGoogle Scholar

↵Alexis F, Pridgen E, Molnar LK, Farokhzad OC (2008) Factors affecting the clearance and biodistribution of polymeric nanoparticles. Mol Pharmacol 5:505–515.CrossRefPubMedGoogle Scholar

↵Canelas DA, Herlihy KP, DeSimone JM (2009) Top-down particle fabrication: Control of size and shape for diagnostic imaging and drug delivery. Wiley Interdiscip Rev Nanomed Nanobiotechnol 1(4):391–404.CrossRefPubMedGoogle Scholar

↵Merkel TJ, et al. (2009) Scalable, shape-specific, top-down fabrication methods for the synthesis of engineered colloidal particles. Langmuir 26:13086–13096.CrossRefGoogle Scholar

↵Rolland JP, et al. (2005) Direct fabrication and harvesting of monodisperse, shape-specific nanobiomaterials. J Am Chem Soc 127:10096–10100.CrossRefPubMedGoogle Scholar

↵Snyder GK, Weathers WW (1977) Hematology, viscosity, and respiratory functions of whole blood of the lesser mouse deer, Tragulus javanicus. J Appl Physiol 42:673–678.Abstract/FREE Full TextGoogle Scholar

↵Nguyen KT, West JL (2002) Photopolymerizable hydrogels for tissue engineering applications. Biomaterials 23:4307–4314.CrossRefPubMedGoogle Scholar

↵Rehfeldt F, Engler AJ, Eckhardt A, Ahmed F, Discher DE (2007) Cell responses to the mechanochemical microenvironment—implications for regenerative medicine and drug delivery. Adv Drug Deliver Rev 59(13):1329–1339.CrossRefPubMedGoogle Scholar

↵Dulinska I, et al. (2006) Stiffness of normal and pathological erythrocytes studied by means of atomic force microscopy. J Biochem Biophys Methods 66:1–11.CrossRefPubMedGoogle Scholar

↵Fattorossi A, Nisini R, Pizzolo JG, D’Amelio R (1989) New, simple flow cytometry technique to discriminate between internalized and membrane-bound particles in phagocytosis. Cytometry 10:320–325.CrossRefPubMedGoogle Scholar

↵Shevkoplyas SS, Yoshida T, Gifford SC, Bitensky MW (2006) Direct measurement of the impact of impaired erythrocyte deformability on microvascular network perfusion in a microfluidic device. Lab Chip 6:914–920.CrossRefPubMedGoogle Scholar

↵Cho Y, De Bruyn PP (1975) Passage of red blood cells through the sinusoidal wall of the spleen. Am J Anat 142:91–105.CrossRefPubMedGoogle Scholar

↵McWhirter JL, Noguchi H, Gompper G (2009) Flow-induced clustering and alignment of vesicles and red blood cells in microcapillaries. Proc Natl Acad Sci USA 106:6039–6043.Abstract/FREE Full TextGoogle Scholar

↵Li J, Lykotrafitis G, Dao M, Suresh S (2007) Cytoskeletal dynamics of human erythrocyte. Proc Natl Acad Sci USA 104:4937–4942.Abstract/FREE Full TextGoogle Scholar

↵Park Y, et al. Measurement of red blood cell mechanics during morphological changes. Proc Natl Acad Sci USA 107:6731–6736.Google Scholar

↵Sandanaraj BS, Gremlich HU, Kneuer R, Dawson J, Wacha S (2010) Fluorescent nanoprobes as a biomarker for increased vascular permeability: Implications in diagnosis and treatment of cancer and inflammation. Bioconjugate Chem 21:93–101.CrossRefPubMedGoogle Scholar

↵Smith BR, et al. (2008) Real-time intravital imaging of RGD-quantum dot binding to luminal endothelium in mouse tumor neovasculature. Nano Lett 8:2599–2606.CrossRefPubMedGoogle Scholar

↵Neubauer AM, et al. (2008) Nanoparticle pharmacokinetic profiling in vivo using magnetic resonance imaging. Magn Reson Med 60:1353–1361.CrossRefPubMedGoogle Scholar

↵Brown AM (2001) A step-by-step guide to non-linear regression analysis of experimental data using a Microsoft Excel spreadsheet. Comput Method Programs Biomed 65:191–200.CrossRefGoogle Scholar

↵Janssen B, Debets J, Leenders P, Smits J (2002) Chronic measurement of cardiac output in conscious mice. Am J Physiol Regul Integr Comp Physiol 282:R928–935.Abstract/FREE Full TextGoogle Scholar

↵Bissell DM, Gores GJ, Laskin DL, Hoofnagle JH (2001) Drug-induced liver injury: Mechanisms and test systems. Hepatology 33:1009–1013.CrossRefPubMedGoogle Scholar

↵Lee WM, Senior JR (2005) Recognizing drug-induced liver injury: Current problems, possible solutions. Toxicol Pathol 33(1):155–164.Abstract/FREE Full TextGoogle Scholar

↵Elif V, Ali U (2005) Polymerization of 2-hydroxyethyl acrylate in bulk and solution by chemical initiator and by ATRP method. J Polym Sci Pol Chem 43:3957–3965.CrossRefGoogle Scholar

↵Tong L, He W, Zhang Y, Zheng W, Cheng JX (2009) Visualizing systemic clearance and cellular level biodistribution of gold nanorods by intrinsic two-photon luminescence. Langmuir 25:12454–12459.CrossRefPubMedGoogle Scholar

↵Gratton SE, et al. (2007) Nanofabricated particles for engineered drug therapies: A preliminary biodistribution study of PRINT nanoparticles. J Control Release 121:10–18.CrossRefPubMedGoogle Scholar


Abstract

It has long been hypothesized that elastic modulus governs the biodistribution and circulation times of particles and cells in blood; however, this notion has never been rigorously tested. We synthesized hydrogel microparticles with tunable elasticity in the physiological range, which resemble red blood cells in size and shape, and tested their behavior in vivo. Decreasing the modulus of these particles altered their biodistribution properties, allowing them to bypass several organs, such as the lung, that entrapped their more rigid counterparts, resulting in increasingly longer circulation times well past those of conventional microparticles. An 8-fold decrease in hydrogel modulus correlated to a greater than 30-fold increase in the elimination phase half-life for these particles. These results demonstrate a critical design parameter for hydrogel microparticles.


biomimeticdeformabilitydrug carrierslong circulatingred blood cell mimic

The ability of mammalian cells to contract or stretch strongly influences their motility and biodistribution (1). The extraordinary flexibility of mammalian RBCs enables them to deform many thousands of times during their long lives in the circulation with up to 100% strain (2) as they pass through restrictions in the vasculature that is smaller than their diameter. During their 120-d lifetime, RBCs experience chemical changes to their membrane structure, rendering them less flexible, and leading to their removal from the circulation via splenic filtration (3). Beyond RBCs, cancer cells, especially metastatic cancer cells, are elastically softer than healthy cells, a characteristic that is believed to be integral to their ability to spread to new locations (1, 4). Although much attention has been directed toward the enhancement of the circulation time of particles, including alterations of particle size (5, 6), shape (7–9), and surface characteristics (10), the role played by deformability in the in vivo circulation profile of particles has not been well explored.


Though particle size has long been considered dominant in determining in vivo behaviors such as circulation time and biodistribution profile, it stands to reason that physical filtration barriers in the body could be navigated by larger, but more deformable particles (11, 12). Deformable particles that resembled RBCs in size and shape have been shown to deform in restricted channels (13) or capillaries (14) that were smaller than the particle diameter, though the modulus of these particles was not characterized (13) or was poorly matched to RBCs (14) and was restricted to in vitro testing in both cases. In a simulation of renal filtration of soft particles, microgels translocated through pores that were 1/10th of the particle diameter under physiologically relevant pressures (15). Filamentous worm-like micelles were found to have increased circulation times with respect to their spherical counterparts, though this effect was attributed to the size and shape of these particles as well as the deformability (8). Inspired by nature’s example of long-circulating microparticles, we sought to mimic the size and shape of RBCs while varying the modulus across a physiologically relevant range to probe the physical barriers encountered in vivo by soft microparticles. Here we show that increasing the deformability of RBC-sized particles increased their circulation times beyond that of conventional microparticles and significantly altered their biodistributions. We found that, as a consequence of their low modulus, these discoid microparticles bypassed several in vivo filtration mechanisms, illustrated by animal survival and dramatic increases in elimination half-lives of particles with decreasing modulus. Such deformable and long-circulating particles may find utility in the fields of drug delivery and medical imaging, where long-circulation times and varied biodistributions are often desirable characteristics (6, 16, 17). Further, we expect these results will stand as an introduction for particle deformability as a vital design parameter that can affect the behavior of particles on both the micro- and nanoscales.


Results and Discussion

Fabrication of Red Blood Cell Mimics (RBCMs).

The particle replication in nonwetting templates (PRINT®) technique that has been developed in our laboratory allows for the fabrication of nonspherical, shape-specific particles through use of elastomeric fluoropolymer molds (18, 19). Using PRINT, we fabricated particles with similar size, shape, and deformability characteristics as RBCs (Fig. 1). In this study we chose to model the 6-μm diameter mouse RBC (20) and observe the in vivo behavior of the RBCMs. Although the distinctive biconcave discoidal shape of mature RBCs is generally conserved throughout the animal kingdom, mouse RBCs (6-μm diameter) are slightly smaller than their human counterparts (8-μm diameter) (20). Many hydrogels exhibit excellent biocompatibility (21), with their swelling and deformability controllable by varying the amount of cross-linking in the gel (22). We used hydrogels composed primarily of 2-hydroxyethyl acrylate (HEA) that were lightly (1–10%, by weight) cross-linked with poly(ethylene glycol) diacrylate (PEGDA, MW = 4,000 g/mol) with a photoinitiator (1-hydroxycyclohexyl phenyl ketone), and polymerizable fluorescent dyes (1%) to facilitate imaging. To mimic the negatively charged RBC membrane, we added 2-carboxyethyl acrylate (10%). See Table S1 for further details on hydrogel composition.


Fig. 1.

Download figure Open in new tab Download powerpoint

Fig. 1.

RBCM particles. (A) A graphical depiction of the PRINT process used to fabricate RBCMs. Briefly (Top to Bottom), an elastomeric fluoropolymer mold (green) with disc-shaped wells was covered by an aliquot of the prepolymer mixture (red). The mold was passed through a pressured nip (black) covered by a high-energy sheet (gray), wicking away excess liquid from the mold surface while filling the wells of the mold. The filled mold was cured photochemically, yielding cross-linked hydrogel particles, which were harvested from the mold by freezing onto a thin film of 1% poly(vinyl alcohol) in water (blue) and peeling away the mold. Melting of this layer resulted in a suspension of hydrogel particles. (B–E) Fluorescent images of hydrated RBCMs with varying percent cross-linker; (B) 10% cross-linked, (C) 5% cross-linked, (D) 2% cross-linked, and (E) 1% cross-linked. Scale bars are 20 μm.


To evaluate the suitability of this hydrogel for RBCM particles, we hydrated macroscopic coupons of hydrogels with varying percentage of PEGDA cross-linker at neutral pH and tested their mechanical properties with an Instron 5556 Universal Testing Machine (Instron) with a strain rate of 5 mm/ min. For bulk modulus studies we used fluorescein-o-acrylate as the polymerized dye, and to improve depth of tissue penetration and avoid tissue autofluorescence, a near-IR dye (Dylight680maleimide) was used for in vivo applications. By lowering the amount of cross-linker from 10% to 1%, we tuned the modulus of the resultant hydrated polymer from 63.9 to 7.8 kPa, respectively (Table 1), overlapping the range of the reported modulus for RBCs (26 ± 7 kPa) (23).


VIEW INLINE VIEW POPUP

Table 1.

Modulus values and compartmental analysis of RBCM particles from intravital microscopy experiments


Because of the swelling observed in the bulk hydrogel samples, we designed scaled-down master templates and molds for this study. The scaled-down features of the molds, with diameters of 2 or 3 μm, allowed the RBCMs to swell to the desired dimensions upon hydration, yielding discs that were 5.2–5.9 μm in diameter and 1.22–1.54 μm tall, with the feature size and final RBCM dimensions dependent upon the percent of cross-linker and the mold used. Filling the molds resulted in a meniscus, leaving the particles thinner in the middle and thicker at the edges (Fig. 1). This effect, which is not uncommon for the PRINT method (9), yielded RBCMs that were reminiscent of the biconcave shape of RBCs.


To assess the biocompatibility of the RBCMs, we performed in vitro cytotoxicity assays on human umbilical vein endothelial cell (HUVEC) (endothelial) cells. We dosed cells with varied concentrations of RBCMs (1.5–200 μg/mL) and incubated for 72 h (Fig. S1) before performing both MTS [(3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium)] and ATP-luciferase assays to assess cell life. Particles were well tolerated at all dosages tested by both assays. To examine the interaction of RBCMs with endothelial cells, we performed a flow cytometry-based cell uptake experiment (24). RBCMs were dosed to HUVEC cells at a concentration of 15 μg/mL and incubated for 15 min, 1, 2, 4, and 24 h, and then evaluated to determine the percentage of cells that had internalized the RBCM particles. Interaction between the RBCMs and cells was minimal, with less than 10% of cells having internalized particles after 24 h of incubation time (Fig. S2).


Microfluidic Examination of Particle Deformability.

To demonstrate the ability of RBCMs to deform in flow conditions such as they might experience in traversing the microvasculature, we utilized a microfluidic device with constricted pores (Fig. 2). Microfluidic models of vascular constriction have been explored to evaluate the behavior of natural and diseased RBCs (25) and synthetic mimics of RBCs (13). We designed a 3-μm tall channel with pores that were 3 μm wide and 50 μm long and repeated many times over the length of the device. The height of the channels was too short for the RBCMs to orient vertically to pass through the restrictions, forcing the particles to deform in order to traverse the pores. The device design (Fig. 2A) included over 100 repetitions of 3-μm restricted pores over the length of the channel, as well as an unrestricted 15-μm path on each side of the restrictions, running the length of the channel. This architecture tested the ability of the particles to deform repeatedly while providing an unobstructed path for fluid flow to maintain reasonably low pressures through the constricted pathways. Although the smallest capillaries in the body have diameters of around 5 μm, RBCs routinely deform to traverse splenic sinusoids that are much smaller (26). When dilute solutions of RBCMs were flowed through the device at a constant flow rate (0.06 mL/ min), the lower modulus RBCMs (1 and 2% cross-linked) navigated these pores, whereas more rigid RBCMs rapidly clogged them (Fig. 2). A movie of 1% cross-linked RBCMs traversing these pores can be seen in SI Text (Movie S1). In flow, the 1% cross-linked RBCMs stretched in the 3-μm wide channels, increasing in length 239% ± 26% (n = 15) while flowing through the restricted channels, followed by a relaxation back to their original discoid shape in the absence of flow. This behavior is similar to that of natural RBCs, which deform under flow conditions and only fully resume their characteristic discoid shape once flow is halted (27). Although RBCMs have similar size, shape, and deformability to RBCs, they differ in fundamental structure: RBCs are fluid-filled sacs contained by a complex membrane that has extreme flexibility originating from the membrane structure (28, 29), whereas the RBCMs are uninterrupted hydrogel discs. These two disparate structures should have different behaviors and mechanisms of deformation in constricted flow (13) though further studies are needed to elucidate these details for the RBCMs.


Fig. 2.

Download figure Open in new tab Download powerpoint

Fig. 2.

Microfluidic evaluation of RBCM deformability. (A) A schematic of the microfluidic devices, with flow driven by a syringe pump. (B) An image sequence showing a 1% cross-linked RBCM (6.0-μm diameter) deforming to pass through a 3 × 3.5 μm channel (25 ms between frames). (C) Ten percent cross-linked RBCMs stuck in the entrance of the 3-μm pores in a microfluidic device. Scale bars are 30 μm.


Compartmental Analysis of RBCM Circulation Profile After Intravenous Administration.

We used an intravital imaging method to examine the behavior of RBCMs when intravenously injected into mice. For intravital approaches, the microcirculation is directly observed with high spatial and temporal resolution, often through the use of surgical techniques to expose tissues of interest (30, 31). In our approach, we observed the peripheral vasculature through the skin of an anesthetized mouse’s ear. We directly observed the RBCMs via the near-IR fluorescence of the particles by imaging every 2 s for 2 h as the particles traversed this portion of the vasculature (see Movies S2 and S3). Elimination curves were generated by tracking the change in fluorescent signal from the particles over time (Fig. 3), normalizing each scan to the maximum intensity slice and plotting decay as a function of this maximum intensity.


Fig. 3.

Download figure Open in new tab Download powerpoint

Fig. 3.

Intravital microscopy data and compartmental analysis. (A) Vasculature highlighted with rhodamine B labeled dextran prior to injection of RBCMs. (B) Dylight 680 labeled 1% cross-linked RBCMs flowing through this stretch of vasculature 20 min after dosing, with ROI outlined in yellow. (C) Colored overlay of A and B, with dextran in blue and particles shown in red. Scale bars are 100 μm. (D) Two-compartment model schematic and governing equations used to fit the data. (E) Decrease in fluorescent signal in the ROI for the 2-h scan in this mouse. The semilog plot shows calculated fit for the two-compartment pharmacokinetic models.


Several pharmacokinetic models were investigated using a standard pharmacokinetic modeling program [WinNonlin (version 5.2.1; Pharsight Corp.)] to describe the plasma concentration versus time profiles to determine the best model. One- and two-compartment models with elimination from the central compartment, from the software’s library, were investigated, as was a two-compartment model with elimination from both the central and peripheral compartments, which was built by our group. The evaluation of the goodness of fit was based on the Akaike information criterion, the variability of the parameter estimates, and the absence of a significant correlation between independent model parameters (< 0.95). The two-compartment model with one elimination step from the central compartment provided the best fit for all of the datasets examined.


To evaluate the kinetics of RBCM clearance, we used this two-compartment pharmacokinetic model, characterized by a biexponential decrease in particle concentration over time (32), with parameters fit by nonlinear regression analysis (33). This model describes an initial (distribution) phase where the particles distribute from the plasma into various tissues, followed by a late (elimination) phase that describes the ultimate clearance of particles from the plasma (Fig. 3). For small molecules and nanoparticles the distribution is attributed to extravasation into tissue; because of their size, the distribution of RBCMs may be due to physical entrapment in constricted capillaries or tissues with low blood flow rather than by an extravasation process. Although we observed the RBCMs only for the initial 2 h in vivo, the uncertainty associated with the mathematical fitting was minimized due to the large number of data points used to fit each curve (over 350). Calculated distribution and elimination half-lives (t1/2(α) and t1/2(β), respectively) trended to longer times with decreased modulus (Table 1). Although the least flexible RBCMs were cleared quite rapidly, circulation times increased with increasing particle elasticity, with the most deformable RBCMs eliminated over 30 times more slowly than their most rigid counterparts (t1/2(β) = 3.9 d).


Intravital microscopy provided a method for direct observation of RBCM particles in the peripheral vasculature of mice and allowed us to make a close and thorough examination of the initial clearance profiles of these particles. Our analysis provided curves with approximately 350 data points illustrating the elimination of these particles from the circulation over each 2-h scan. Nonlinear regression analysis yielded excellent fits, with the large number of data points adding a measure of certainty to the shape defined by these elimination curves. With a method of directly observing the particles, we expect that our detection limits should be quite low as we are able to discern individual particles in the scans. However, this method was not without limitations. Direct correlation of the intensity of the fluorescent signal of the particles to a particle concentration was difficult due to several factors, including variabilities in the depth, volume, and flow rates in observed portions of vasculature and the relatively fast movement of particles relative to the scanning speed of the microscope. Lacking the correlation to particle concentration, we were unable to perform a full pharmacokinetic analysis on the RBCMs examined, though much was learned through an analysis of the shape of these curves.


To verify the long-circulating behavior of 1% cross-linked RBCMs, we tracked particle concentration in blood at time points out to 5 d postinjection via a more traditional blood-draw method. We examined three mice per time point, including 2, 8, 24, 72, and 120 h postinjection. At each time point examined, we sacrificed the mice, collected blood via cardiac puncture, and measured the fluorescent signal from the particles in the whole blood, which was correlated to concentration through the generation of a standard curve (see SI Text). Pharmacokinetic analysis of these data by the two-compartment model discussed above was in good agreement with the data obtained from the intravital technique; both techniques showed a fairly rapid distribution of the majority of the dose to various tissues, with 10–15% remaining in the blood after 2 h, resulting in an elimination half-life of 3.6 d, with 5% of the injected dose remaining in the blood after 5 d (Table 2).


VIEW INLINE VIEW POPUP

Table 2.

Pharmacokinetic parameters for 1% cross-linked RBCMs calculated from blood draws taken out to 5 d postinjection


Biodistribution of RBCM Particles After Intravenous Injection.

To examine the biodistribution of RBCMs with changing deformability, we sacrificed the mice 2 h postinjection and harvested tissue and blood samples for further analysis. Tissue samples were not perfused prior to analysis. Five and 10% cross-linked RBCMs distributed primarily into the capillary beds in the lungs (Fig. 4). This behavior is typical for intravenously injected micro-particles, with the bulk of the dose most likely sequestered immediately postinjection as this is the first downstream tissue with microvasculature. These stiffer RBCMs were poorly tolerated, with significant distress requiring sacrifice of some mice prior to scan completion; presumably due to the stiff particles contributing to pulmonary embolism. More flexible RBCMs (1 and 2% cross-linker) were very well tolerated, presumably due to the avoidance of filtration in the lungs. Mice that were sacrificed early were not included in any datasets presented here, as the time postinjection was incongruent with the bulk of the data analyzed. The most deformable RBCMs (1% cross-linked) were primarily sequestered in the spleen (67% recovered fluorescence/g), having largely avoided filtration in the lungs. Lung filtration was largely avoided by particles with 2% or less cross-linker (≤ 16.9 kPa, bulk material), suggesting that the modulus of these materials may indicate a threshold value for avoidance of filtration by the lungs. Uptake in the kidneys was significant for all but the 1% cross-linked RBCMs, though further studies will be required to elucidate the mechanism of this clearance.


Fig. 4.

Download figure Open in new tab Download powerpoint

Fig. 4.

Biodistribution of RBCMs. (A) Distribution of RBCMs into various tissues 2 h postdosing by percent recovered fluorescence normalized for tissue weight. Error bars represent one standard deviation, with n = 3 for each case. (B) Lung tissue from a mouse dosed with 10% cross-linked RBCMs. Particles are shown in red, with cell nuclei in purple, and cytoskeleton (F-actin) stained green. (C) Lung tissue from a mouse dosed with 1% cross-linked RBCMs, with tissue stained as in B. Very few RBCMs were in this tissue compared to mice dosed with more rigid particles, consistent with the tissue distribution data. Scale bars are 50 μm.


Distribution of 1% cross-linked RBCMs in liver, lung, spleen, kidneys, and blood was tracked for 2, 8, 24, 72, and 120 h postinjection (Figs. S4 and S5). Saturation of tissues occurred at different times, indicating a redistribution of particles after some initial distribution at the time of dosing. Although splenic accumulation peaked at 24 h, signal in the lungs decreased over the time course of the experiment; suggesting a delayed release of the physically entrapped particles back into the circulation.


With approximately 5% of the cardiac output flowing through the spleen (3) and the total blood volume of the mouse circulating 7–8 times per minute (34), the whole blood volume was passed through the mouse spleen some 42–48 times over the course of our 2-h scans. The continued persistence of 1% cross-linked RBCMs in the circulation after this time suggests that splenic accumulation may be due in part to long residence time rather than permanent filtration, as is the case for RBCs, where filtration occurs first as an effect of slow blood flow through the macrophage containing red pulp, followed by physical filtration when passing through the sinusoids or transmural apertures (3).


Further studies will be required to illuminate the capability of these particles to carry and deliver therapeutic payloads; however, extremely low modulus RBCMs could have therapeutic applications for splenic disorders due to their preferential accumulation in this tissue and the have potential for drug delivery applications due to their long-circulation times and low accumulation in the liver. Drug dosing can be limited by toxicity to a clearance organ such as the liver (35, 36). The apparent splenic clearance of RBCMs affords the possibility of different dosing restrictions if these particles were to be used as drug carriers because of the low concentrations found in the liver, as well as the possibility for direct treatment or imaging of the spleen. The most deformable of the RBCMs tested here successfully navigated regions of constricted blood flow, resulting in extended circulation times and illuminating a critical design parameter for microparticles. Further experimentation with extremely deformable materials on different size scales—from tens of nanometers to the 6-μm diameter particles used in this study, should cast light on the role played by deformability in enhancing the circulation times of biologically relevant particles.


Materials and Methods

Materials.

Commercially available HEA (96%, Aldrich) contains impurities such as acrylic acid, ethylene glycol, and ethyleneglycol diacrylate (EGDA) and was purified prior to use according to the procedure set forth by Elif and Ali (37). Briefly, HEA was dissolved in water (25% by volume) and the solution extracted 10 times with hexanes. Salt (200 g of NaCl/L) was added to the aqueous phase, and the monomer was extracted by washing with ether (4 times). The solution was dried with MgSO4 (3 wt %), and ether was removed by rotary evaporator. The purified monomer was distilled under vacuum prior to use. PEG 4000 diacrylate (DA) (Polysciences, Inc.), 2-carboxyethyl acrylate (Aldrich), fluorescein-o-acrylate (97%, Aldrich), 1-hydroxycyclohexyl phenyl ketone (99%, Aldrich), Dylight 680 maleimide (Thermo Scientific), Fluorescein-o-acrylate (97%, Aldrich) and methacryloxyethyl thiocarbamoyl rhodamine B (PolyFluor 570, Polysciences, Inc.) were used as received. All other materials were used as received, unless otherwise noted.


Modulus Testing.

To measure the mechanical properties of the cross-linked HEA hydrogels, we polymerized macroscopic coupons of the prepolymer mixtures described in Table S1 via UV light (λ = 365 nm, power = 20 mW/cm2) in a Teflon mold. The cross-linked hydrogels were removed from the mold, weighed, and then placed in pH 7.4 PBS buffer for 24 h to fully hydrate. The coupons were patted dry with paper towels and weighed again prior to testing with an Instron 5556 Universal Testing Machine (Instron) with a strain rate of 5 mm/ min.


Particle Fabrication.

For the PRINT technique (9, 18), master templates were prepared via traditional photolithography to have ordered arrays of raised discs with low aspect ratios, mimicking the shape of RBCs. A photocurable perfluoropolyether (Fluorocur, Liquidia Technologies) was drop cast onto a master template, and a flexible plastic sheet was applied to the top of the resin to act as a supportive backing for the mold that resulted from photocuring of the resin and subsequent removal from the master template. The master templates and molds used in this study had discoid features with 2- and 3-μm diameters and heights of 0.6 and 0.9 μm, respectively, and produced particles with 5- to 6-μm diameters due to swelling of the particle hydrogel material. For the fabrication of the particles, the prepolymer mixture was spread onto a mold that was chilled to 2–5 °C on a custom-built laminator platform. The reduced temperature prevented evaporation of the prepolymer solution prior to photocuring. A poly(ethylene terepthalate) (PET) sheet was laminated to the top of the mold and prepolymer solution, wetting the total mold area. The sheet was peeled away at the nip point of the laminator, leaving the wells of the mold filled while wicking away excess solution. The filled mold was immediately transferred into a chilled (2–5 °C), nitrogen purged UV oven and cured with UV light (λ = 365 nm, power = 20 mW/cm2). After curing, the filled mold was placed face down on a thin film of 0.1% 2,000 g/mol poly(vinyl alcohol) (PVOH, Acros) in water on top of another PET sheet. This assembly was placed in a -80 °C cooler, allowing the water to freeze and adhere to the particles. After freezing, the mold was peeled away from the particles trapped in the ice layer, and the ice was allowed to melt. RBCMs and water were collected, then washed and concentrated via tangential flow filtration with a MicroKros hollow fiber filter (500 kDa, Spectrum Laboratories, Inc.) to remove any sol fraction from solution. Particles were then suspended in 0.1% 2,000 g/mol PVOH in PBS, pH 7.4 for subsequent experiments.


Particle Characterization.

These methods (confocal microscopy, cell viability, cell uptake, and zeta potential) are described in SI Text, Figs. S1 and S2, and Table S2.


Microfluidics.

Microfluidic devices were fabricated from silicone (Sylgard 184, Dow Corning) sealed to glass after treatment with oxygen plasma, with flow driven by a syringe pump at a fixed rate (0.06 μL/ min). Dilute solutions of 1% cross-linked RBCMs (1–5 μg/mL in PBS with 0.1% PVOH) were pumped through the channel and observed with a fluorescence microscope (Nikon TE2000). Videos were taken with a with a Photometrics Cascade II∶512 camera. Particle stretching was analyzed with ImageJ software.


Intravital Microscopy.

Intravital microscopy experiments were performed using an IV 100 laser scanning microscope (Olympus) on female BALB/c mice of 22- to 26-g body weight (Harlan Sprague Dawley). Hair was removed from the ear and a tail vein catheter was applied. The mice were anesthetized with isofluorane and placed onto a heated stage (37 °C) in a prone position, with an ear immobilized by taping to an aluminum block. Vasculature was located by injection with a solution of 20 mg/mL rhodamine B labeled 70-kDa dextran (Invitrogen) in PBS and visualized by excitation with a 568-nm laser. A suspension of RBCMs, 33 mg particles/kg mouse weight via a 3.5 mg/mL solution of RBCMs in PBS with 0.1% PVOH, was then injected and visualized using a 633-nm laser. Controls were injected with the dextran solution followed by 200 μL of PBS with 0.1% poly(vinyl alcohol). Imaging scans proceeded for 2 h, with an image taken every 2 s. For analysis of the circulation persistence of the particles, the image files from each scan were exported to imageJ. For ease of analysis, we followed the example of Tong et al. (38) and stacked the images in groups of 10. We analyzed the region of interest containing vasculature for fluorescent signal in each scan and corrected for variation in laser intensity or autofluorescence by background correcting each image with the signal from a region of the scan that was free of vasculature. For comparison, we normalized each scan to the maximum intensity slice for that scan, providing curves that measured the clearance of particles from the peripheral vasculature over time as a percentage of the maximum signal. Further details are outlined in SI Text.


Controls and dosed mice were sacrificed 2 h after injections, and blood and tissues were harvested for imaging. Harvested tissues including liver, lung, spleen, kidneys, heart, and intestines were weighed, then imaged using an IVIS Kinetic fluorescence imaging system (Caliper Life Sciences) with excitation at 675 nm and emission measured at 720 nm. Blood was harvested via cardiac puncture and pipetted in 100-μL aliquots to black 96-well plates for analysis on the imager. The fluorescent signal for each tissue sample was background corrected by subtracting the signal from control tissues. Biodistribution profiles for the RBCMs at 2 h postdose were determined by percent of recovered fluorescence in the above tissues (Fig. 4). Fluorescent signal in the blood was calculated by measuring the fluorescent signal from several aliquots of blood and extrapolating to account for the total blood volume in the mice (approximately 1.7 mL/20 g of body weight) (39).


Biodistribution.

Harvested blood was analyzed for fluorescent signal with an IVIS Kinetic imager with excitation at 675 nm and emission measured at 720 nm, and concentrations were calculated with a standard curve. Harvested tissues were analyzed as above, with biodistribution profiles presented as a percent of the recovered fluorescence per gram of tissue weight.


Blood-Draw Experiments.

For evaluation of longer time points, particles were injected as in the previously described study, with mice sacrificed at the indicated time points by cardiac puncture. Fluorescent signal from harvested blood was measured as above, with concentrations determined from a standard curve resulting from serial dilutions of particles in mouse blood (Fig. S2).


Hisology.

Details of the procedure for staining and imaging the harvested tissues are found in SI Text.


Pharmacokinetic Analysis.

Further details on the pharmacokinetic analysis carried out for the RBCMs can be found in SI Text.


Acknowledgments

We thank the University of North Carolina Animal Studies Core for its assistance. This work was supported by the STC program of the National Science Foundation (CHE-9876674), National Institutes of Health (NIH) Director’s Pioneer Award (1DP1OD006432-01), the Center for Cancer Nanotechnology Excellence (NIH 5-U54-CA119373-02), Liquidia Technologies, and NIH (1R21HL092814-01).


Footnotes

1To whom correspondence should be addressed at: 257 Caudill Labs, The University of North Carolina at Chapel Hill, Department of Chemistry, CB#3290, Chapel Hill, NC 27599-3290. E-mail: desimone@unc.edu.

Author contributions: T.J.M., S.W.J., A.R.S., M.N., A.Z.W., J.E.B., and J.M.D. designed research; T.J.M., S.W.J., K.P.H., F.R.K., A.R.S., and J.C.L. performed research; T.J.M., H.W., and W.C.Z. analyzed data; J.E.B. contributed new reagents/analytic tools; and T.J.M. wrote the paper.


Conflict of interest statement: The authors declare competing financial interest. Joseph DeSimone is a founder, member of the board of directors, and maintains a financial interest in Liquidia Technologies. Liquidia was founded in 2004 to commercialize PRINT technology and other discoveries of Professor Joseph DeSimone and colleagues at the University of North Carolina, Chapel Hill.


This article is a PNAS Direct Submission.


This article contains supporting information online at www.pnas.org/lookup/suppl/doi:10.1073/pnas.1010013108/-/DCSupplemental.


References

↵Suresh S (2007) Biomechanics and biophysics of cancer cells. Acta Biomater 3:413–438.CrossRefPubMedGoogle Scholar

↵Fung YC (1993) Biomechanics Mechanical Properties of Living Tissues (Springer, New York), 2nd Ed, p 121.Google Scholar

↵Bowdler AJ, ed (2002) The Complete Spleen. Structure, Function, and Clinical Disorders (Humana Press, Totowa, NJ), 2nd Ed, 140, pp 18–20–30–47.Google Scholar

↵Suresh S (2007) Nanomedicine: Elastic clues in cancer detection. Nature Nanotechnol 2:748–749.CrossRefGoogle Scholar

↵Champion JA, Walker A, Mitragotri S (2008) Role of particle size in phagocytosis of polymeric microspheres. Pharm Res 25:1815–1821.CrossRefPubMedGoogle Scholar

↵Kohane DS (2007) Microparticles and nanoparticles for drug delivery. Biotechnol Bioeng 96:203–209.CrossRefPubMedGoogle Scholar

↵Champion JA, Katare YK, Mitragotri S (2007) Particle shape: A new design parameter for micro- and nanoscale drug delivery carriers. J Control Release 121:3–9.CrossRefPubMedGoogle Scholar

↵Geng Y, et al. (2007) Shape effects of filaments versus spherical particles in flow and drug delivery. Nature Nanotechnol 2:249–255.CrossRefGoogle Scholar

↵Gratton SE, et al. (2008) The effect of particle design on cellular internalization pathways. Proc Natl Acad Sci USA 105:11613–11618.Abstract/FREE Full TextGoogle Scholar

↵Drummond DC, Meyer O, Hong K, Kirpotin DB, Papahadjopoulos D (1999) Optimizing liposomes for delivery of chemotherapeutic agents to solid tumors. Pharmacol Rev 51:691–743.Abstract/FREE Full TextGoogle Scholar

↵Fox ME, Szoka FC, Frechet JM (2009) Soluble polymer carriers for the treatment of cancer: The importance of molecular architecture. Acc Chem Res 42:1141–1151.CrossRefPubMedGoogle Scholar

↵Mitragotri S, Lahann J (2009) Physical approaches to biomaterial design. Nat Mater 8:15–23.CrossRefPubMedGoogle Scholar

↵Haghgooie R, Toner M, Doyle PS (2009) Squishy non-spherical hydrogel microparticles. Macromol Rapid Comm 31:128–134.Google Scholar

↵Doshi N, Zahr AS, Bhaskar S, Lahann J, Mitragotri S (2009) Red blood cell-mimicking synthetic biomaterial particles. Proc Natl Acad Sci USA 106:21495–21499.Abstract/FREE Full TextGoogle Scholar

↵Hendrickson GR, Lyon LA (2010) Microgel translocation through pores under confinement. Angew Chem Int Edit 49:2193–2197.CrossRefGoogle Scholar

↵Alexis F, Pridgen E, Molnar LK, Farokhzad OC (2008) Factors affecting the clearance and biodistribution of polymeric nanoparticles. Mol Pharmacol 5:505–515.CrossRefPubMedGoogle Scholar

↵Canelas DA, Herlihy KP, DeSimone JM (2009) Top-down particle fabrication: Control of size and shape for diagnostic imaging and drug delivery. Wiley Interdiscip Rev Nanomed Nanobiotechnol 1(4):391–404.CrossRefPubMedGoogle Scholar

↵Merkel TJ, et al. (2009) Scalable, shape-specific, top-down fabrication methods for the synthesis of engineered colloidal particles. Langmuir 26:13086–13096.CrossRefGoogle Scholar

↵Rolland JP, et al. (2005) Direct fabrication and harvesting of monodisperse, shape-specific nanobiomaterials. J Am Chem Soc 127:10096–10100.CrossRefPubMedGoogle Scholar

↵Snyder GK, Weathers WW (1977) Hematology, viscosity, and respiratory functions of whole blood of the lesser mouse deer, Tragulus javanicus. J Appl Physiol 42:673–678.Abstract/FREE Full TextGoogle Scholar

↵Nguyen KT, West JL (2002) Photopolymerizable hydrogels for tissue engineering applications. Biomaterials 23:4307–4314.CrossRefPubMedGoogle Scholar

↵Rehfeldt F, Engler AJ, Eckhardt A, Ahmed F, Discher DE (2007) Cell responses to the mechanochemical microenvironment—implications for regenerative medicine and drug delivery. Adv Drug Deliver Rev 59(13):1329–1339.CrossRefPubMedGoogle Scholar

↵Dulinska I, et al. (2006) Stiffness of normal and pathological erythrocytes studied by means of atomic force microscopy. J Biochem Biophys Methods 66:1–11.CrossRefPubMedGoogle Scholar

↵Fattorossi A, Nisini R, Pizzolo JG, D’Amelio R (1989) New, simple flow cytometry technique to discriminate between internalized and membrane-bound particles in phagocytosis. Cytometry 10:320–325.CrossRefPubMedGoogle Scholar

↵Shevkoplyas SS, Yoshida T, Gifford SC, Bitensky MW (2006) Direct measurement of the impact of impaired erythrocyte deformability on microvascular network perfusion in a microfluidic device. Lab Chip 6:914–920.CrossRefPubMedGoogle Scholar

↵Cho Y, De Bruyn PP (1975) Passage of red blood cells through the sinusoidal wall of the spleen. Am J Anat 142:91–105.CrossRefPubMedGoogle Scholar

↵McWhirter JL, Noguchi H, Gompper G (2009) Flow-induced clustering and alignment of vesicles and red blood cells in microcapillaries. Proc Natl Acad Sci USA 106:6039–6043.Abstract/FREE Full TextGoogle Scholar
